Colourful Outdoor interlocking sport court removable plastic floor
tiles
Suspended interlocking floor also known as combined type sports
floor, which is the fourth generation sports floor , usually as
surface material used in sports ground. the finished product is
square shape, dimensions are 25*25cm , 30.48*30.48cm, 40*40cm and
58*58cm . it can be installed on the surface of cement and asphalt
foundation , no need adhesive bonding . the floor is connected with
the unique lock part that make it is very easy to intall and can be
free to remove.
the sport tiles made of environmental material high strength
polypropylene with the mature and advenced technolog, effectively
soved thermal expansion and contraction problem, at the same time
the the sport tiles have stable surface friction , add
anti-ultraviolet agent can protect the floor from fading in
long-term sunlight. suspended and solid reinforced support leg ,
create excellent vertical shock absorption effect, non-slip surface
can effectively prevent sports injury, the floor has excellent
athletic performance, good ball bounce performance and speed . It
can be used for paving high performance basketball court, tennis
court, five-a-side football pitch, roller skating court, table
tennis court and volleyball, badminton and other multi-functional
courts.
Product features
| Performance | An innovative flooring with wooden floor equivalent performance and
can be shiny. |
| Design | By combinations of two or more colors on each single panel, any
complex patterns can be shown on the full-sized venue |
| Feelings | Ultimate sport experience to players. |
| Safe Material | Environmentally friendly material that is harmless to the human
body and has no contamination to the environment. |
Main performance features
| 1. | Equivalent performance and sensation to the wooden floor. |
| 2. | Realize the effect of multi-picture shown on small area. |
| 3. | It shows highlighting and magical effects at night. |
| 4. | The flooring surface provides thermal insulation, no dry heat
feeling for summer nor frozen feelings for winter. |
| 5. | The design on the full-sized pitch can be customerized. |
| 6. | Breaking the technology bottleneck of single material monolithic
application by implementing two or more materials with different
performance. |
| 7. | The luminous efficiency can reach 5-15 hours / day and lasts for 5
years. |
Product technical data
| Item | Result |
Anti-slide Value (BPN, 20℃) | 50-57 |
| Tensile Strength | ＞0.9(MPa) |
Flame Retardant |
ClassⅠ |
Shock Absorption Rate | ＞30 % |
Standard Vertical Deformation | 2-2.5(mm) |
Ball Rebound Rate | ＞90 % |
Sliding Friction Coefficient | 0.5-0.55 |
Chemical Performance |
Satisfied |
| Application | Indoor Sport Courts |
| Outdoor Courts: Basketball, Tennis, Hockey, Futsal, Volleyball,
Badminton, Roller Skating, Kid Playground, Multi-sport Courts. |
| Service life | 10-15 years |
| Luminous efficiency | 5-15 hours / day and lasts for 5 years.
|

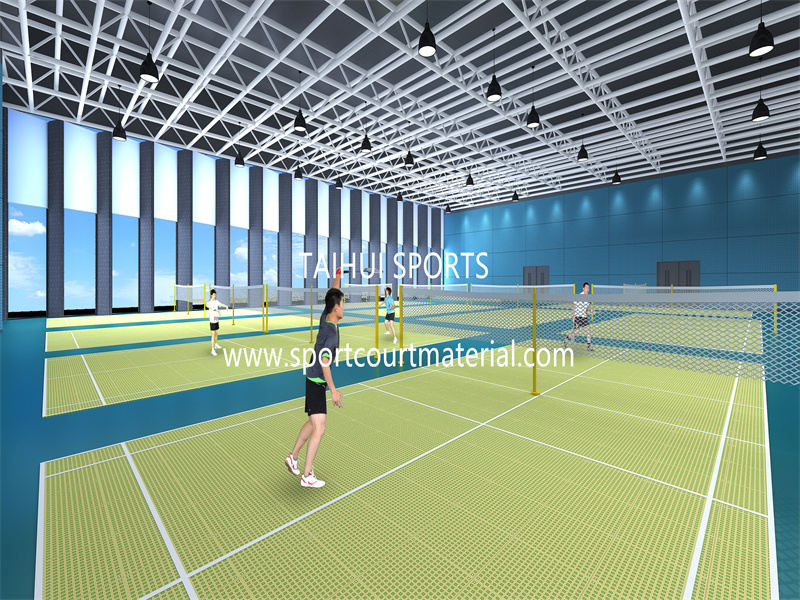

Product application courts
Product details
Product is luminous shiny at night

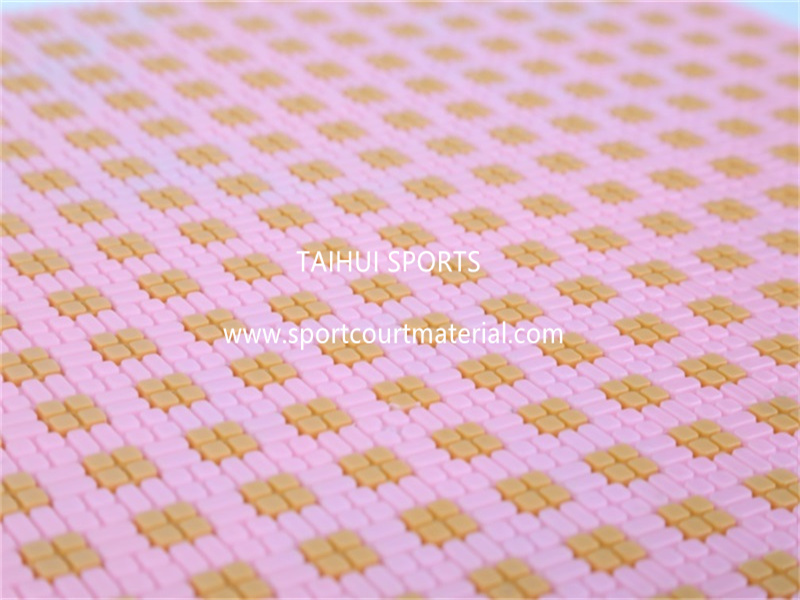

The jigsaw puzzel effect of the product
